Purpose

Sometimes you may want to modify the Avastar meshes

• to create slight modifications of the original SL character.

• to use the original as starting point for your own Model.

• to create static (posed but not rigged) versions of the Avastar meshes.

The workflows below help you to Quickly create a Mesh based clone of the SL Avatar.

Good to know in advance

Important: In some cases you may want to modify (edit) the Avastar character meshes. For example when you want to …

• Create a tiny or a giant.

• Add extra shape beyond what you can do with sliders.

• Modify the Avastar Meshes into something totally different.

• Join the character parts to have one single mesh body

Well, you actually can do this. But you must convert the Avastar Meshes into regular custom meshes ( see the Freeze option in the Avastar Tool Box).

If you do not prepare (freeze) the Avastar meshes, then you have a good chance to break Avastar and create wild results as shown below:

Unexpected results after small edits in the Avastar meshes

The technical reason for this behavior

Avastar needs to translate the slider settings into the final shape as you can see in the Blender 3D View. However the shape calculation is based on a hidden reference shape. This reference shape is created once when the sliders are setup for the character. And Avastar relies on the reference shape having the same mesh topology (same number of verts, edges and faces) as the visible mesh.

But as soon as you edit the visible mesh you introduce a difference to the reference shape. Then it becomes likely that Avastar gets everything wrong. And things like in the image above can happen.

You can get over this by freezing the Avastar character. Basically you then remove all shape keys from the character. What this means will be explained later.

Workflow

This is the most basic process of creating a simple character mesh based on the SL Avatar mesh

Step 1: Create a new Avastar

Adding a new Avastar

You can add a new Avastar Character only when Blender is in Object mode. You navigate to the Add -> Avastar menu and select from one of the rig types:

• The Basic variant is the legacy Avatar with the classic SL Bones and the Fitted mesh Bones, but without the extended (Bento) Bones

• The Complete variant is the full Avatar with all Bones including the Classic bones, the Bento Bones and the Fitted mesh Bones and a few more bones for various purposes (IK, structure, Animation, …)

• The Skeleton Variant only loads a Skeleton without Meshes using the default Shape (Orange). This is useful for example when you want to make a creature Rig where you do not need the Avatar meshes at all.

• The Animesh variant is similar to the Skeleton variant, except that it comes with Sliders disabled and using the Neutral shape (White).

Note for long term Avastar users: You can add back the old variants in the Avastar Preferences window

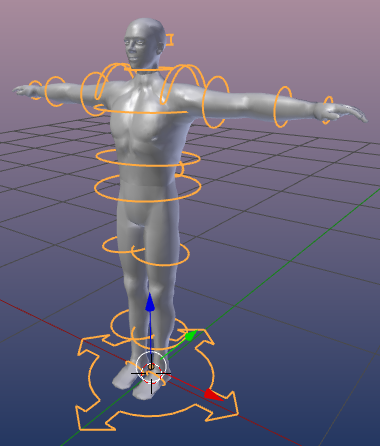

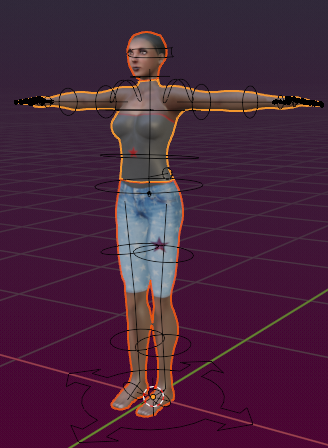

After a short time (typically 2-4 secs) a new Avastar character is created in the 3D View and at the center of the 3D View .

Step 2a (optional): Use Appearance Sliders

In a Nutshell: We support the same Appearance Slider system that you can find in SL, OpenSim or other compatible worlds. You find the Appearance Sliders in the Toolshelf – Avastar Tab:

• Go to object mode.

• Select the Rig (RMB on the yellow circles around the mesh).

• Open the Tool Shelf – Avastar Tab

• Locate the Appearance Panel (see image).

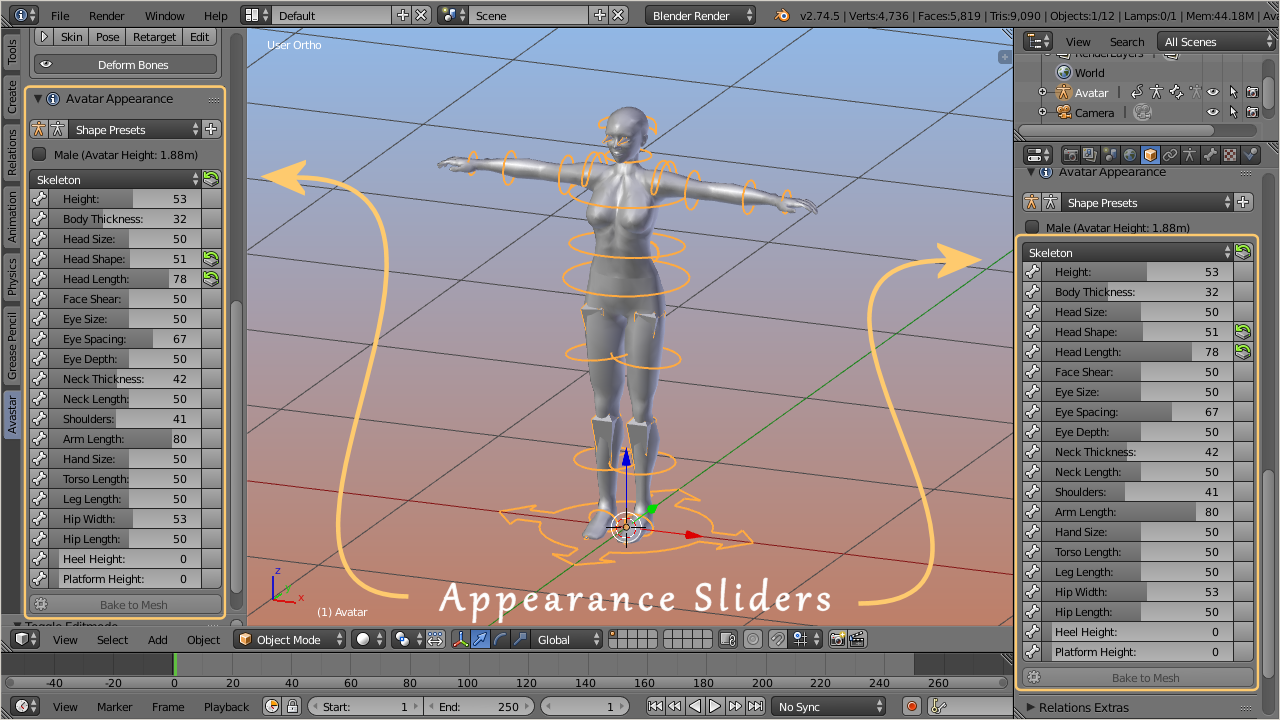

The UI Elements of the Appearance Sliders

It may look small and easy to use, but it is also a very powerful tool in your daily life with Avastar. So there is a lot of activity behind the scenes. The tool actually loads a complex extra set of data and this consumes a few seconds of load time.

Load Appearance Sliders…

When you have just started Blender you may find the appearance sliders are not yet available. Instead you find a button to load them…

Click to activate the Appearance sliders

You only need to load the sliders once and they stay available as long as Blender is running, even when you switch to other blend files.

The Appearance Panel is divided into 3 sections…

Shape Presets Section

The top row of the Panel already contains a powerful set of actions.:

• Orange Stickman: Set SL Default Shape (Identical to create new Appearance in SL)

• White Stickman: Set the SL Neutral Shape (SL Restshape, see additional note (*) below)

• Backup to Shape Buffer: Quick backup the current Shape without need to permanently store it in a Shape Preset

• Paste from Shape Buffer: Restore the shape from the Shape Buffer back into the Sliders

• Shape Presets: Here you can add your own Slider configurations. When you click the white “+” sign the current shape slider values get stored as a new Preset (see also below)

(*) Where the White Stickman preset makes sense

• Using as Animesh: When you intend to use your mesh as Animesh in SL then please make sure you select the white Stickman icon before you do your export. This makes sure that what you export will be the same as how your Animesh will look later when it moves in world.

• Import from other tools: The White Stickman preset may be useful when you bind to a mesh that was made for the SL Skeleton in its neutral shape (like workbench or avatar.blend, or imports from other tools like Maya or 3DS Max)

• Working without Shape Sliders: The SL Restshape is also needed when you disable the appearance sliders (see the section Appearance Sliders and Custom Rigs below)

The Shape Presets Selector

The Preset Selector can be used to store your custom Shapes. For example when you attempt to work with a fixed set of Standard Shapes, you can create Presets for each of your supported Shapes.

All you need to do is:

• Define your shape (by moving the Shape Sliders, see below)

• Create a new Preset

Presets are stored globally (outside of the current Blend file), so all defined presets are available at any time in any project. Avastar is shipped with a few example presets (See image above)

Shape Properties Section

• Use Bind Pose: Treat the Restpose of the Rig as a Bind Pose. This is mostly used for slightly modified Rigs (e.g. A Posed Rigs).

• Male: When enabled, the Shape switches to Male gender. The current absolute Avatar Height is displayed in parentheses.

The Sliders Section

The section subpanel of the Avatar shapes panel contains the Shape Sliders. the sliders are organized almost identical to the Appearance Editor in SL. The values assigned in SL match exactly with the slider values in Blender.

• Some sliders have a small Bone icon on their left side. This indicates the slider affects the bones (bone sliders).

• Some sliders have a small magnet icon on their left side. This indicates the sliders affects a fitted Mesh bone (Collision Volume bone)

• Sliders with no icon on the left side affect only the System Character mesh (Morph sliders). They have no influence on your Custom Meshes.

Fitted Mesh Sliders indicated with a magnet

• Sliders with a peach colored Bone Handle on their left side indicates the sliders affect the new Bento bones. But note: Some of the Bento bones are also affected by the other sliders. This is not indicated in the Avastar Appearance Settings. Please take a look at the Bone-Slider map.

The icons on the right side of the sliders indicate that the slider value has been changed. Click on these icons to reset the corresponding Slider Value to its default (Then also the icon disappears)

Note: The Reset icon on the Top Right of the section panel resets the entire Bone Section to its Default Values.

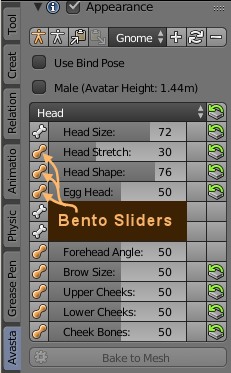

Bento Sliders indicated by a peach colored Bone Handle

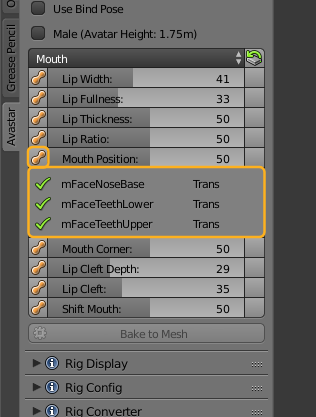

Slider to Bone Mapping

Avastar maintains a built in mapping between sliders and affected bones. The mapping is hidden as a pull down list.

The list is expanded/collapsed by clicking the leftmost icon of a slider. The bone list contains

• Green checkmark: the Bone is not edited

• The Bone Name

• ‘Trans’: The slider moves the bone

• ‘Scale’: The slider scales the bone

Note: The slider mapping is directly taken from the Avatar definition files. It is supposed to be an exact mapping.

Appearance Sliders and Custom Rigs

In general, the appearance sliders also work when the rig has been edited (when the Armature was modified in edit mode). However the sliders behave slightly different for bones which have been edited. Especially when sliders not only scale bones but also translate them (like for example the eye distance slider or the Shoulder distance slider) then as soon as the bones are edited, they only can be rotated and scaled. Any translation component is then suppressed!

The Appearance Sliders in Avastar behave in the same way as they do in Second Life, but we have added a visual hint, that indicates when a slider affects one or more bones with custom joints…

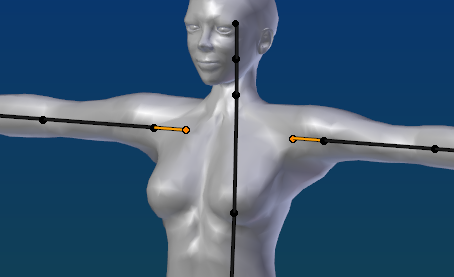

Assume you have edited the Shoulder Bones and separated them a bit (see image). This means the Shoulder bones (actually mShoulderLeft/Right to be precise) are now treated differently. And now all sliders which directly move the Shoulders will be colored in red.

What is the meaning of red sliders?

One pretty obscure feature of the SL appearance slider system is that it distinguishes between bones with edited joints and bones without edited joints. As soon as a joint is edited, all sliders which directly affect the bone no longer apply bone translations to the bone. However Bone scaling remains intact even for edited Bones. Becasue of this feature we have marked all sliders with a red background when they affect bones with joint edits.

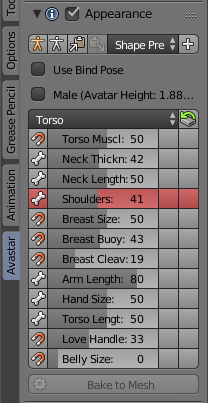

In this example you see the red Shoulders slider indicating that it no longer translates the mShoulderLeft/Right bones as before.

Appearance Sliders and Shape Keys

Avastar supports the usage of Shape keys with your custom rigs. However shape keys and Appearance sliders are somewhat intertwined. When your custom mesh has shape keys defined, then you occasionally need to update the Appearance sliders data.

This is done with the operator Sync with Shapekeys in the Appearance Sliders panel.

When to use the Sync with Shapekeys

• You changed the Appearance sliders while (after) you are editing a shape key

• You renamed your shape keys

• You modified the order of your shape keys

Tip: Set the sliders to white stickman (the icon in the top of the Appearance slider panel) before editing shape keys

Caveat: (Important to know!)

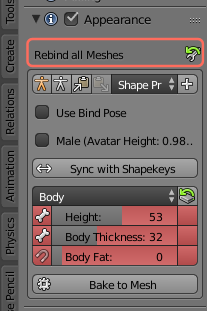

Whenever you edit a custom mesh, Avastar marks the mesh as modified and adds a Rebind all Meshes button on top of the Appearance sliders panel. When you use Shape keys there is an unfortunate twist.

Rebinding all meshes applies (bakes) your shape keys. So, if you want to keep the Shape keys, then you do not want to use the repair button! T

his is also true for the Skinning panel where the repair reference mesh button shows up in red. We are aware of this inconsistency and try to make this more elegant.

Working only with the SL Restshape

By default the Appearance sliders are enabled. This allows you to test the behavior of your meshes in regard to the Avatar Appearance sliders, before the meshes are even exported. However, sometimes a rig becomes so complicated and the creator decides that the usage of the Appearance sliders is actually not wanted. In this case Avastar allows you to disable the sliders by unchecking the check mark in the header of the Appearance panel.

Important: When you want to disable the appearance sliders, then it is best to set the white stickman mode first. This makes sure that your rig matches the neutral skeleton. While this is not strictly necessary we still recommend that you enable the white Stickman shape prior to disabling the sliders. Then you can be sure that if you ever want to enable the sliders again, you will not suffer from unwanted stretching of the skeleton.

The Special Sections

• We have added 4 extra sections (Changed, Fitted, Extended and Skeleton) which do not appear in the Second Life Shape editor:

• The Changed section is empty by default and will be populated by the list of changed Shape sliders of your Avastar.

• The Fitted Section contains all Sliders which affect Fitted Mesh Bones (Collision Volume Bones).
• (new): The Extended section is the collection of sliders which affect the new Bento Bones.

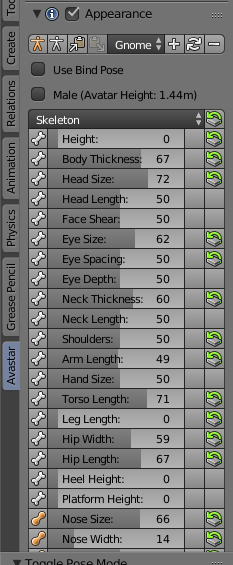

• The Skeleton section (see image) contains all sliders which affect the bone length of the Avastar character.

• On top of the list (in the Section Header) you see a Reset button. This button will reset all shape sliders of the current Section to its factory defaults.

• Each slider can be dragged, or you can click on it and then type in a number.

• If a slider has been changed then you see a reset icon right to the slider. Clicking on that icon resets the slider to its default value.

Bake to Mesh:

This function makes all slider changes permanent for the active (and selected) Custom Mesh. Take care: This function deletes all Shape keys (should you have defined Some) and the Mesh gets permanently and irreversible changed!

Hint: This option is not available (greyed out) for the Avastar Meshes.

Special Feature: The Mesh deformer

The Mesh deformer is an old development that came about a couple of years ago, but the project has never gone public in Second Life. However we keep basic support for the Mesh deformer available, because other compatible online worlds might possibly support the Mesh deformer.

Hint: If you plan to create Meshes compatible to the Mesh Deformer, then you will want to reset all bones in the Skeleton Section to their default values (Reset Section to defaults).

Step 2b (optional): Change Gender

You can change the Gender of the Avastar character as follows:

• Select the Avastar Armature

• Open the Data Properties Tab in the Properties window:

• locate the Gender Selector and enable “Male”

Your final result will look like this:

Note: You can switch the Gender on and off as you like.

Step 3: Freeze your Shape

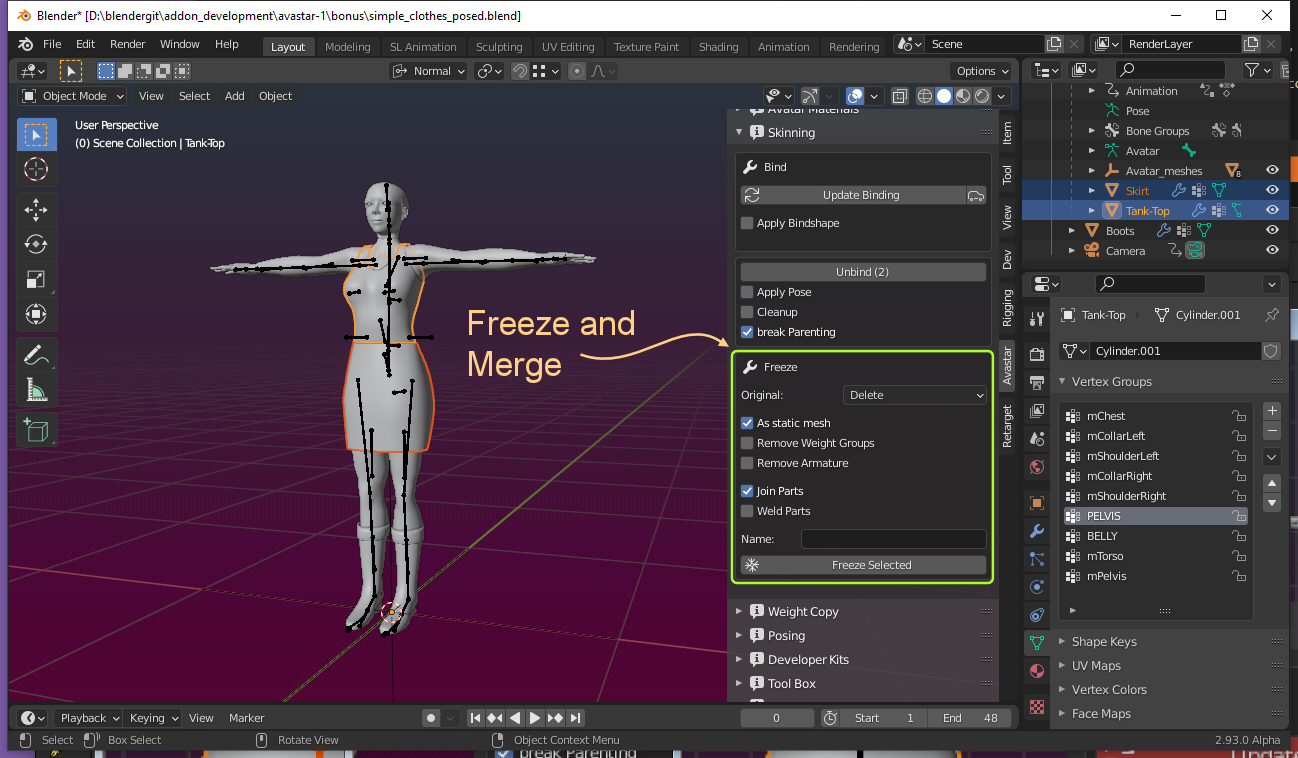

Freeze Shape

The Avastar Meshes can not be modified. As soon as you try to do this, you will get very bad distortions. This is due to how Shape keys are handled in Blender.

The freeze either creates static meshes from your rigged meshes, or modifiable versions of your selected meshes. The tool basically removes all shape keys and all Avastar control data.

The Freeze Tool is used in following situations:

You want to create a static statue from an Avastar Object in the current pose and with no rigging information assigned. But when you export the Avastar character to SL as it is, then the imported mesh rezzes always in T-Pose, even when you exported in another pose.

You want to use the Avastar system meshes as initial model for your own custom Avatar project. But Avastar always tells you to not edit the system meshes.

For unrigged Objects: You just want to bake the current Shape into the Mesh and remove the Shape keys.

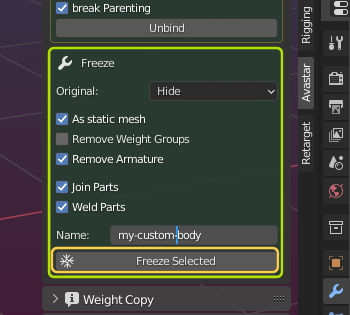

Usage

• Ensure Blender is in Object Mode.

• Select all parts which you want to freeze.

• Set the freeze options (see below)

• Freeze Selected.

Note: You can apply Freeze Shape to any mesh object (unrelated to Avastar). This is practical for example when you want to apply all shape keys.

Details

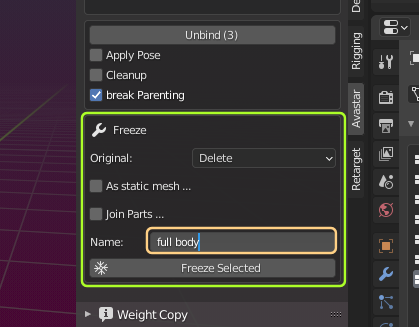

Select all parts of the Avastar meshes which you want to freeze.

• Then set the Freeze Options (if available for your meshes)

• And finally freeze Selected

It is important to understand that this tool always creates a copy of the selected meshes with all Shape Keys applied! The copies are placed exactly where the original meshes are located.

Note: The frozen Meshes no longer react in the exact same way to the Avastar sliders as the original Avastar character does. However, the meshes behave exactly in the same way as they will behave when imported into SL, OpenSim or other compatible virtual environments.

What you should know

• When you select to Keep the Original, then the original mesh and your frozen mesh will overlap and you might not be able to see that there are actually 2 meshes now.

• When you select to Delete the Original, then the Original Avastar mesh is fully replaced by your frozen version.

• When you select to Hide the original, then the Original Avastar mesh will be hidden from view, then you only see the frozen version.

• when you enable as static mesh then your frozen mesh will be detached from the armature and it will end up as a simple non rigged static mesh in whatever pose in which you placed it.

• When you enable Remove Weight Groups then all weight groups of the frozen mesh will be deleted and you end up with a static non rigged mesh without any weights associated to it. (A naked model so to say)

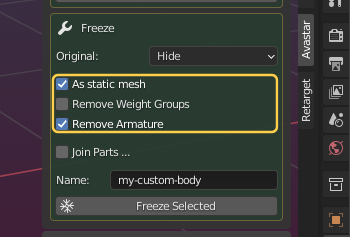

The Tool Options

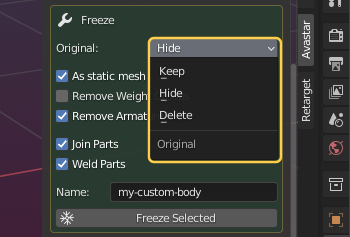

Original:

This option defines what shall happen with the original Mesh(es) (those which you have selected in Object mode)

Values:

• Keep: The Original Mesh is kept and remains visible. Thus the original and the new copy are displayed at the same time

• Hide: The Original mesh is kept but gets hidden. You can always unhide hidden objects with the keyboard shortcut ALT + H

• Delete: The Original Mesh is deleted.

As static Mesh:

If the original Mesh was rigged to an armature, then -by default- the frozen mesh Copies keep rigged as well. But sometimes you want to get a complete static statue with no animation information at all. In this case you will select this option.

Additional options:

• Remove Weight Groups: The frozen object contains no animation data (noe weight maps). This option is rarely used, but very handy when needed

• Remove Armature: After freezing the entire Armature with all its children gets removed from the Scene.

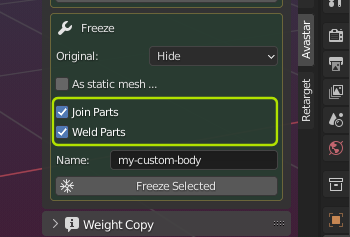

Join Parts:

If you have selected 2 or more objects, then the Join Parts option appears. The selected meshes are merged into one mesh object.

Additional option:

• Weld Parts: All duplicate vertices along the adjacent edges of the joined parts are merged. Seems are preserved.

Caveat: The Weld Parts option only removes doubles along the welded edges. Duplicate vertices on any other place in your meshes will not be removed by the freeze tool!

Proceed to weight Copy…

Step 4: Join Parts (Optional)

Join Avatar Parts

Joining parts of a mesh will make all parts belong to one single object.

• Select all objects that you want to join. Here i have selected the Head, the upper body and the lower body of a frozen version of the Avastar character:

Note: You can select multiple objects by holding the SHIFT key down while you right click on the parts which you want to select.

• Press CTRL +J to join the parts into one object

What you should know

You might have duplicate vertices especially along the seams of the meshes. You can remove these duplicates as follows:

• Go to Edit Mode

• Select all Vertices (press “A” once or twice)

• Press “W”

• Select the “Remove Doubles” function

• Go back to Object Mode

Your final result will look like this:

Step 5: Export the Mesh

The Collada exporter exports your Mesh character or mesh attachment to a file with the file ending .dae and possibly it also exports a set of images (image textures). You find the Mesh Exporter in the Blender Export menu.

The Exporter opens with a file selection window where you can set the file to where you want to export.

The Export option Panel

Hint: You usually can keep the default settings and just click on the “Collada(Avastar)(.dae)” button in the lower right corner of the Window (see zoom icon in this chapter title).

A File Selector will pop up. Here you can navigate to your export directory and then export your file as a Collada file (using the file extension “.dae”) There is also a set of export options available on the right side of the window (see image)

Tip: If you intend to use your exported mesh for Animesh then please note that Animesh currently does not support the Shape Sliders in world. Your mesh will always been displayed as when you enable the Neutral Shape preset in the Avastar Shape Editor panel.

The Export option Sub-panels

Textures export (advanced)

You can export images along with your models. In that case Avastar stores the images as files on your disk and adds a reference to the Collada file. The SL Importer knows how to read and import these images for static meshes.
Note: For rigged meshes the images are not recognized by the SL Importer. This is a viewer bug which has never been fixed.

• Image Format: (default is png) is typically predefined in the Render settings. However we found it convenient to offer an immediate setting in the Exporter. By default the exporter applies the image type only to generated images.

• Use ‘Image format’ for all images: If you set this option, then Blender will use the selected image format for all exported images. If you disable the option, then only the generated images are affected.

• Use RGBA: Blender can export the Alpha channel for images. Normally you set this in the render settings where you can specify to use either RGB or RGBA for image exports. If the selected export format supports Alpha then enabling RGBA here will export images with Alpha channel even if the render settings are set to RGB and vice versa.

Hint: You may want to NOT use RGBA because of the Alpha glitch. However this is not a general advice. There are many situations where using Alpha images is even recommended (for example when you want to create an Alpha mask).

Hint: If the format of the exported image(es) does not support an Alpha channel then the “Use RGBA” option is simply ignored.

Advanced options

The Advanced Options are related to special scenarios. You should normally keep all options set as they are. This makes sure that your exports are well suited for SL. However in some situations you will have to get back here and set the options according to the descriptions below.

Warning: You must really know what you do when you set an advanced option. Handle with care!

Use Bind Pose: The Use Bind Pose option is largely documented in the Bind Pose Workflow
You normally set this option in the Avastar Shape Editor. We added it here only for convenience.

Following options are only available when the Use Bind Pose option is enabled:

• with Reset Animation: Avastar generates a 0-priority single frame animation of the current Restpose. This animation can later be used in SL together with an animation reset script (see below)

• with Reset Script: Avastar generates an LSL Script ready for usage in SL. In SL you copy this script together with the Reset Animation (see above) into your model’s inventory. You need this especially when you are not exporting in white stickman mode (see Avastar Shape Editor)

• Animesh Restpose: when your model shall be used as an Animesh, then you need to enable this option here. Otherwise your imported meshes will not look the same as in Blender.

Animesh Restpose: You use this option when you want to export cor Animesh. Note this option only resets the Shape Editor to White Stickman for Export. You may actually want to work in White Stickman Shape all the time, so this option is here just for convenience.

Apply Armature Scale: If you have scaled your Armature in Object Mode for making a tiny or a giant you should not apply the scale to the armature because then the entire Avastar Animation system may no longer work. But the Object Scale must be applied when you export the mesh.

Otherwise the target online world does not recognize the scaling and the giant shrinks back (or the tiny grows back) to normal size. The apply Armature Scale option ensures that the Object scale is applied in the exported Armature.

Apply Rotation & Scale: If you have Scaled or rotated your Objects in Object Mode then this Scale&Rotation should be applied to all objects of an export to avoid unexpected scaling and rotation issues within the target system. However this is all so often simply forgotten and sometimes even unknown.

Hence we have added an automatic apply Rotation&Scale to the exporter. This setting does not affect the original objects.

Export SL Rotation: When you export an Avastar Rig then it must be rotated according to the SL Standards (so that the character looks into the positive X direction).

Hint: You want to enable this option when you export to Second Life or similar worlds.

Disabled: Do nothing
Enabled: Rotate the Rig by 90 degrees to make it compatible to the SL specifications

Triangulate: Export the meshes as triangles. Normally you want to do the triangulation on your own if at all. You also can just export without triangulation and let the SL Importer do the job. Or just use this option here.

This is an optional setting. We set it to True because it seems to be the safest option of all possible ones.

Weld Edge Normals: When two separate objects share a boundary line, then you typically see a boundary seam in the object texture. This happens because the vertex normals differ even if the adjacent objects share the same vertex locations.

The exporter recalculates the vertex Normals at the adjacent boundaries of the selected objects.

Weld to all visible: Sometimes you want to only export one part but still want the vertex Normals be fixed.

This option lets the exporter take all visible objects into account when calculating the vertex Normals at object boundaries.

Export Shape: The current Shape from the Shape editor is exported as an avatar shape file (with extention .xml) Some viewers (firestorm) can import this file as new Avatar Shape by some

This option is most important especially for Developerkit makers. If you distribute this shape along with the developerkit file, then Avastar can setup the Developerkit Manager with more precision.

Sanity Checks: Perform tests on the Mesh (tricount, texture face counts, etc…)

Hint: You want to enable this option in most cases.

Bone Filters

Define which subset of the Bones in the rig are exported along with the meshes.

Export with Joints: When you have edited the Armature to adjust the Rig to your special character (Alien, creature, pet…) then you normally want to keep your edited Armature when you export your Meshes.

Hint: You want this option disabled only when your rig is so complex that Avastar can not calculate the Neutral Rig for your situation. In that case please set the sliders to SL Neutral (Avastar Shape Editor, white stickman icon) and never touch the sliders again (actually the sliders will be locked when you select the neutral shape)

Disabled: Export the Rig visually as it is. Note: You must make sure that the Avastar Shape Editor is reset to the SL Neutral Shape (White Stickman Icon). Otherwise Avastar rejects the exports.

Enabled: Calculate the neutral skeleton from the current rig settings (temporary set Sliders to Neutral SL Settings) but apply the current Slider settings as bind pose. Pleased refer to the Bind Pose document for further explanations.

Export all Bones: Add all bones of the rig to the exported Model.

You want to enable this option only when you plan to export your model for import into another 3D Modelling tool.

Only Weighted Bones: Avastar can export all deform bones of the Rig. However in most cases it is enough to only export the deform Bones which are actually used (weighted to meshes)

Hint: You want to enable this option in most cases.

Disabled: Export all deform Bones unconditionally
Enabled: Export only those bones which are actually used (have weights for meshes)

Only Deform Bones: Avastar has many control bones (mainly for IK-Animation, targetless Animation and attachment points) Avastar can export all Bones of the rig, or only the Deform bones

Hint: You want to enable this option in most cases.

Disabled: Export all Bones in the Rig unconditionally
Enabled: Export only deform Bones

Allow Weighted Attachments: SL does not allow weighting of attachment points. Hence we suppress the export of weights for attachment points by default.

This option should indeed never be used for SL! Handle with Care. It is very likely that the SL importer rejects meshes with attachment point weighting at some time in the future.

Enforce Parent Hierarchy: Ensures that all parent bones of exported bones are also exported, even if they have no weights defined.

Details: When you enable the above bone filters then it can happen that not all bones of a Bone chain are exported. This becomes a problem when one or more of the not exported bones have Joint edits defined. Those definitions would then get lost during export.

Hint: You want to enable this option in most cases.

Disabled: Do nothing
Enabled: Take care that all parent bones of exported Bones are also exported.

Collada Options

The Collada options are mainly for exporting the models with the most possible extra information. This data can ater be used by other 3D programs or target engines for rebuilding as much of the original Avastar rig as possible. Those options are rarely used.

Export Bone Roll: Export Bone Roll using the Blender Collada Scheme.

Hint: This is only useful when you want to later import back the Dae file to Blender.

Disabled: Do nothing
Enabled: Export the Bone roll according to Blender’s Collada Scheme

Export Bone layers: Export Bone Layer Data using the Blender Collada Scheme.

Hint: This is only useful when you want to later import back the Dae file to Blender.

Disabled: Do nothing
Enabled: Export the Bone Layer data according to Blender’s Collada Scheme

Export with Blender Profile: Use Blender Collada scheme for exporting Blender specific Information

Hint: This is only useful when you want to later import back the Dae file to Blender.

Disabled: Do nothing
Enabled: Export Extended Options according to Blender’s Collada Scheme

Unsupported Options

Avastar also provides some advanced export options. However those options are not shown by default as they are only rarely used.

Note: If you really want to use these options, then you first need to enable them in the Avastar Addon Properties Panel.

You enable these options in the Avastar Add-on Panel (where you initially enabled the Add-on after you installed it):

Limit Weight Count: In SL the number of weights per vertex is strictly limited to 4. We believe this number is enough for all weighting tasks. In cases where you think this limit is too low, we always found the real problem was due to bad mesh topology and bad rigging.

Setting this number affects the maximum number of weights which are exported by Avastar. We strongly recommend to keep this number set to 4.
